A C++ physics simulation and visualization tool for modeling and solving classical mechanics problems through real-time 3D interaction and numerical methods.

Overview

This project is a custom-built physics simulation and visualization tool designed to model classical mechanics problems in an interactive 3D environment. Users can construct physical scenarios, manipulate objects directly in the scene, and either simulate their behavior over time or numerically solve for unknown quantities.

While similar tools and engines already exist, this project was built from the ground up as an exercise in understanding computational physics, numerical methods, and modern OpenGL rendering, with a strong emphasis on clean architecture and maintainability. It also explores how visual tooling can help bridge the gap between abstract equations and physical intuition.

Example Scenario

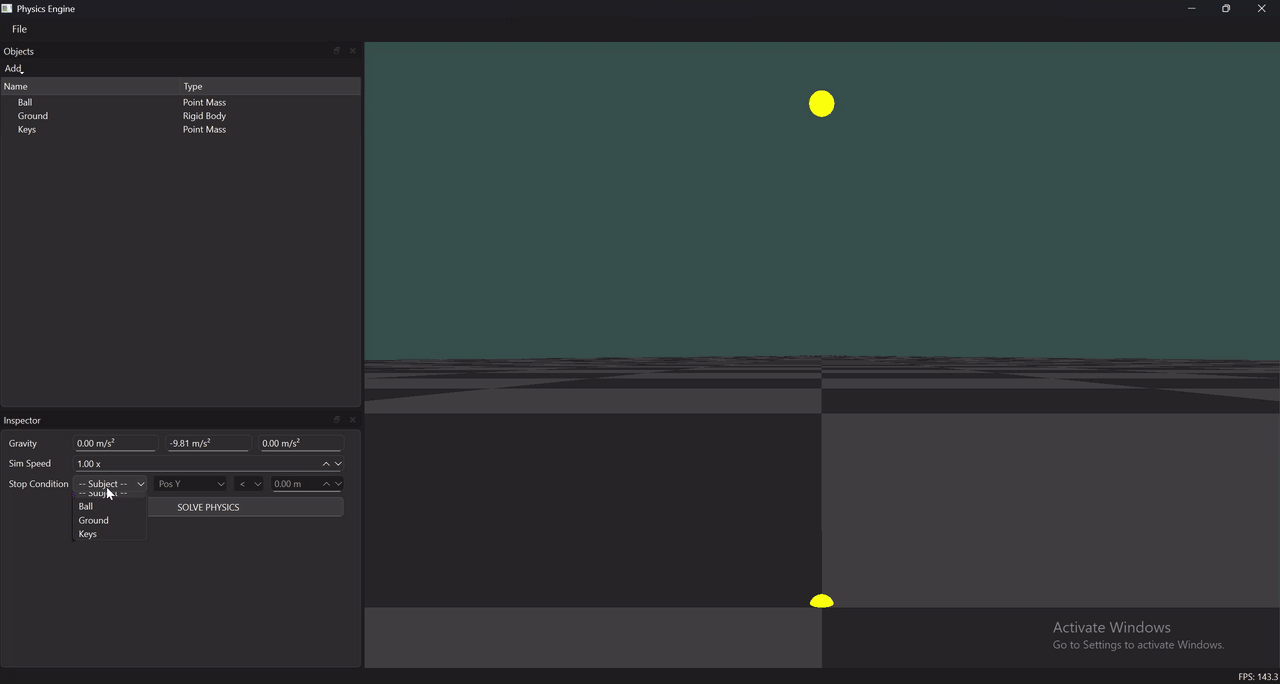

A set of keys is dropped from rest from a height of 20 m, while a ball is simultaneously thrown upward from the ground with an initial velocity of 15 m/s. The system numerically determines the height at which the two objects pass each other.

Core Features

Physics Simulation

3D physics simulation
Velocity Verlet integration for stable, energy-conserving motion
Support for point masses and rigid bodies
Gravity and arbitrary constant forces
Collision detection and resolution for
- Point mass on point mass
- Point mass on rigid body

Numerical Solvers

Solvers are templated and decoupled from physics data structures, operating purely on generic callables, allowing reuse outside of physics
Physics problems are routed to solvers via a dedicated problem-routing layer
Intermediate solver iterations are exposed to the user, allowing visualization of convergence rather than only final results

Interactive 3D Visualization

Real-time OpenGL renderer with free-fly camera controls
Object selection and manipulation directly in the scene
Transform gizmos for translation, rotation, and scaling
Compute shaders (SSBOs) used for GPU-based ray intersection tests

Editor-Style UI

Qt-based application interface
Scene hierarchy and inspector panels
Live modification of object properties
Controls for running, pausing, and solving simulations
Snapshot system that records full simulation state at each timestep for debugging and analysis

Multithreaded Simulation

Physics simulation runs on a dedicated thread, decoupled from rendering and UI
Ensures responsive interaction while simulations or numerical solvers are running

Architecture Overview

This project is organized into two major layers and executes across multiple threads to maintain responsiveness during simulation and problem-solving. The physics simulation runs on a dedicated thread, while rendering and UI logic execute independently on the main thread:

PhysicsCore

A standalone static library containing:

Physics bodies and simulation logic
Collision handling
Numerical solvers
Math and utility code

This layer is designed to be independent of rendering and UI concerns

Testing and Validation

The physics core is designed to be testable in isolation from rendering and UI. Unit tests focus on numerical correctness and regression protection as the system evolves. More information about testing in Testing and Validation.

Application layer

OpenGL rendering and scene management
Qt-based user interface
Editor tools and interaction logic
Visualization of physics state and solver progress

A key architectural goal is separation of concerns. Numerical solvers are intentionally decoupled from physics-specific code, allowing the same solver infrastructure to be reused for different problem domains.

Project Status

This is an ongoing independent project and work in progress. The codebase prioritizes clarity, modularity, and extensibility, even when features are incomplete. The current implementation represents a stable foundation for future experimentation and refinement.

Author

Jacob Behnam
